Product details

Description

Introducing the new L70 Helios.

From outdoor adventures to everyday work, the L70 Helios right-angle flashlight is your workhorse companion. We paired efficient optics with the unparalleled Lume X1 boost driver for long runtimes. Magnets at the tail, side, and a headlamp attachment allow for flexible use. We built this flashlight for you to get things done.

Note (Oct 2024) - Please note that for the current batch of Navy Blue, there are some slight color differences in the tail cap due to anodization tolerances. Please refer to the video above.

Features

  • Body Size - 112mm x 31.5mm x 25mm
  • Weight - 92g (without batteries)
  • High CRI FFL707A or High Intensity CREE XHP70.3 HI LED Emitters
  • Battery - unprotected flat-top 21700 (not included, recommended to use high-drain cells including Molicel P42, P45, P50, or Samsung 40T, 50S, or Vapcell T50)
  • RGB Auxiliary Illuminated RGB Top Switch
  • CNC Construction, 6063 Alloy, Stainless Steel Bezel and Switch

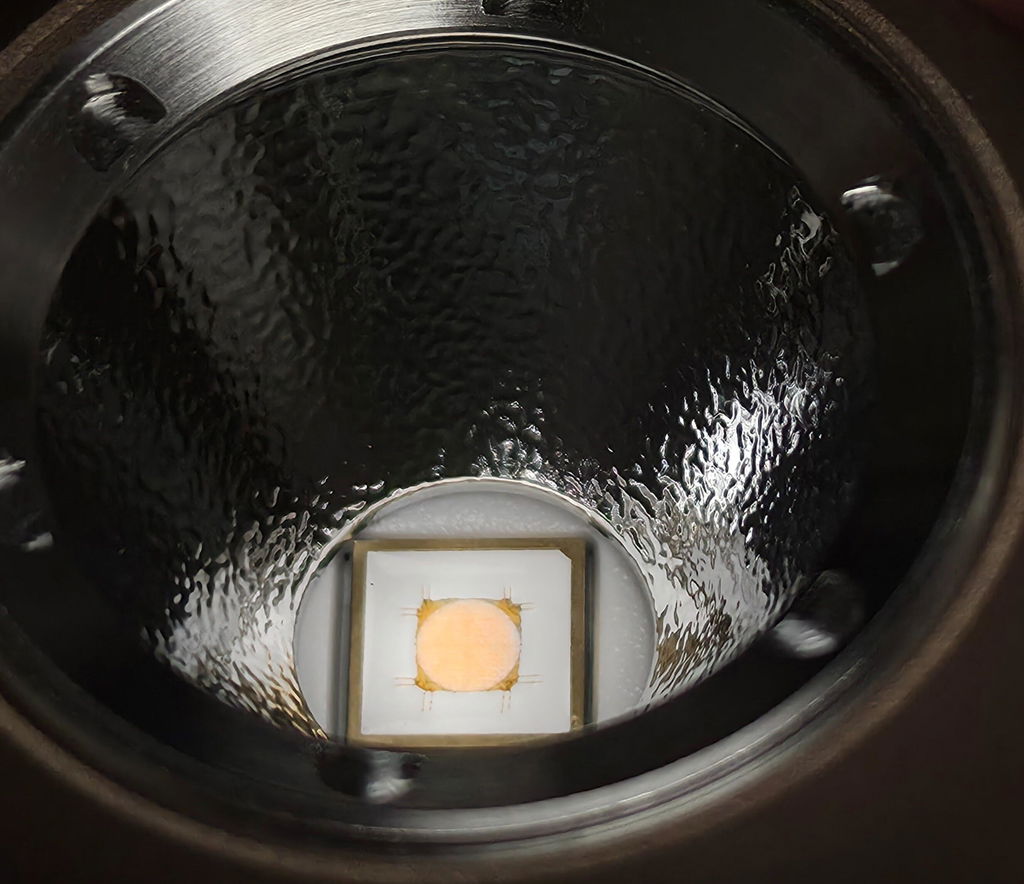

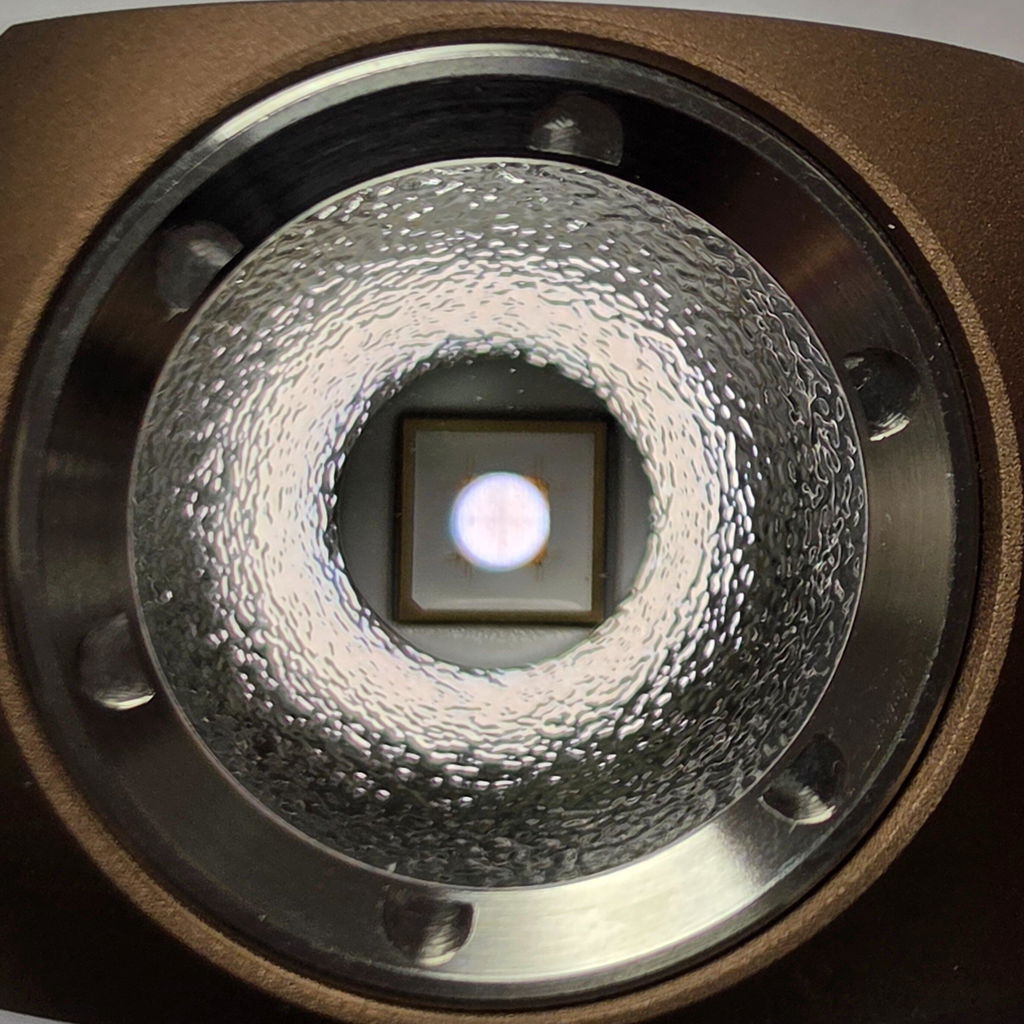

  • Aluminum Alloy OP Reflector
  • Open-Source Anduril2 User Interface / Firmware
  • Lume X1 40W Boost Driver, Constant Current Regulated (up to 95% efficiency) with UDR (Ultra Dynamic Range)
  • Automatic Thermal Regulation, Low Voltage Cut-off, Reverse Polarity Protection
  • Improved Be-Cu Beryllium Copper Silver-Plated Springs
  • Toughened Front Glass Lens, AR Coated (~98% transmittance)
  • 304 Stainless-steel Tail Armor for Abrasion Resistance
  • Tail & Side Magnet for Multiple Mounting Options
  • Water Resistance - IPX8

Included Accessories

  • 1x Two-way Stainless-Steel Clip
  • 1x Lanyard
  • Spare O-rings

User Interface: (Anduril V2)

This flashlight uses the open-sourced Anduril user interface. Anduril 2 is an open-sourced software and distributed under the terms of GPLv3. The source can be accessed here

By default, this flashlight begins in Simple UI with 5 brightness levels. Enter the hidden Advanced UI to access additional features and more configuration options.

Details can be found in Anduril User Guide

Battery Level Indicator

L70 uses the RGB auxiliary switch LEDs to indicate the current battery level upon turn-off. The colors correspond as follows:

This post-off display can be turned off or configured in Anduril.

Operation Notes

  • L70 Helios is a high-performance flashlight capable of up to 40W and generates a lot of heat. Please understand that this is not a toy and should be handled with safety.
  • L70 uses the high-performance Lume X1 driver. For best performance, use high-drain unprotected flat-top 21700 Lithium-ion cells only. Recommend cells include Molicel P42, P45, P50, or Samsung 40T, 50S, or Vapcell T50.
  • Batteries and external charger are not included.
  • To prevent accidental activation of the flashlight, it is recommended to lock-out the flashlight (4 clicks from off to lock or unlock) before storage or unscrew the body a quarter turn as a mechanical lock-out.
  • This flashlight has low-voltage protection which cuts off power at 2.8V. It is recommended to begin recharging the cell before this happens to increase battery longevity.
  • The Lume X1 driver (Rev B with AVR32DD20 MCU) features UPDI flashing pads for advanced users to perform their own firmware updates or to flash custom firmware binaries.
