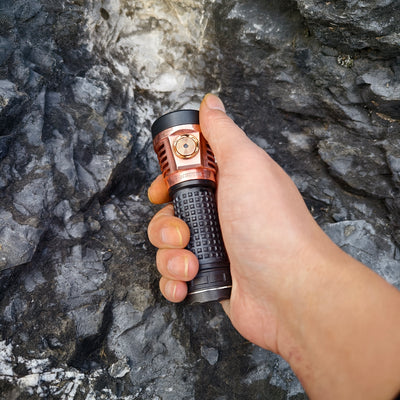

E07X Cannon Copper&TiCu Limited Edition

The Classic, Collective E07X TICU

Introducing the limited-edition E07X Surge in all-copper, and titanium-copper.

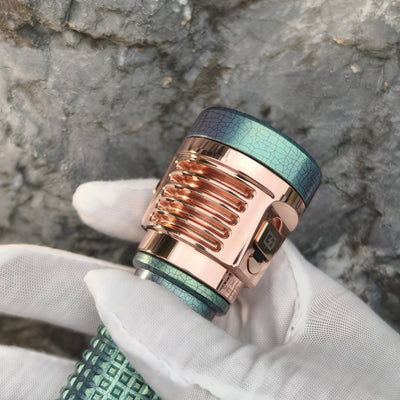

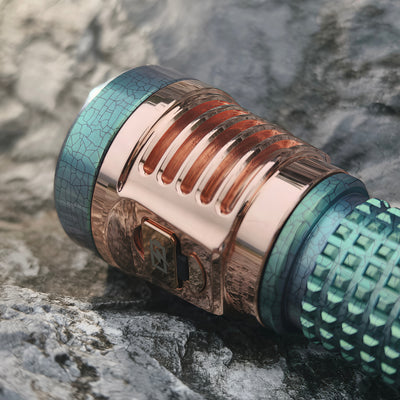

Each flashlight begins with a billet of Ti-6Al-4V (Ti64) titanium alloy, carefully machined down and finished to form the body. After numerous iterations, we are proud to offer two striking finishes.

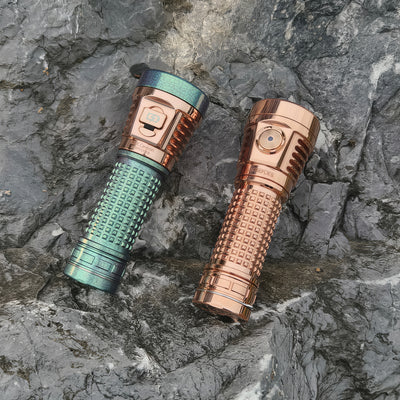

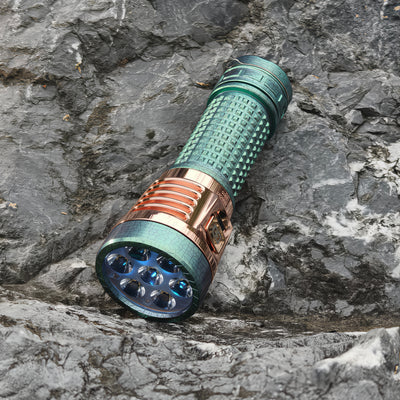

Jade Relic is a tribute to our heritage. A careful anodization process forms a metallic green tint, yet retains titanium's natural luster. Subtle iridescent tones shift with the light.

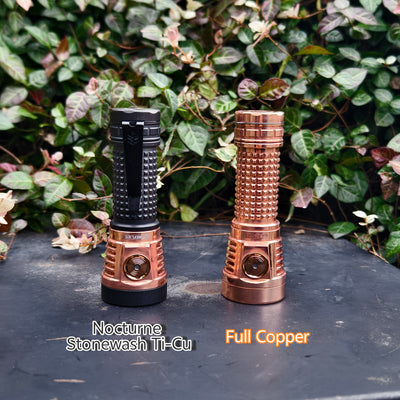

For those who prefer understated sophistication, Nocturne offers a deep, durable, stonewash finish that wears gracefully overtime, reminiscent of moonlit steel.

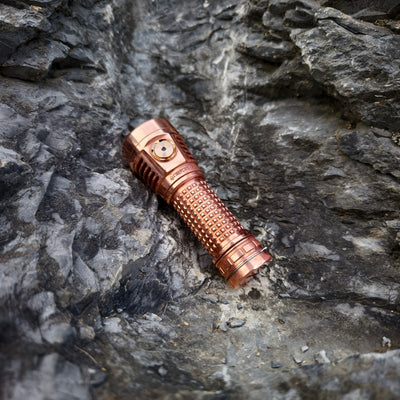

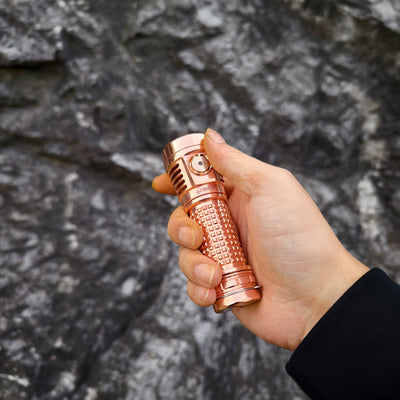

And for the purists, we are offering a Full-Copper variant, for superior thermal and electrical conductivity, with a patina that wears uniquely, and an unmistakable weight in hand.

Key Differences vs. Aluminum Versions:

1. Custom matching hardware (clip, bezel, buttons)
2. Mechanical lockout from tail-cap only
3. Stronger tail magnet (due to increased flashlight weight)
4. Material properties may lead to increased heat on high modes or turbo - this flashlight is a high-performance tool and must be used responsibly

Features

• Compact Size - 112mm x 40mm x 26.5mm
• Weight -Full Copper 308gram ;  Ti-Cu 238gram

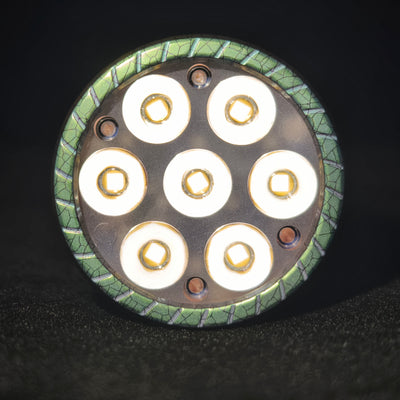

• 7x 3535 LED Emitter Configuration
  • Max Output: 7500 Lumens (depending on emitter choice)
  • Max Beam Distance:  SFT25R - 380m; FFL351A - 320m
• Battery - unprotected flat-top 21700 (not included, recommended to use high-drain cells including Molicel P42, P45, P50, or Samsung 40T, 50S, or Vapcell T50)

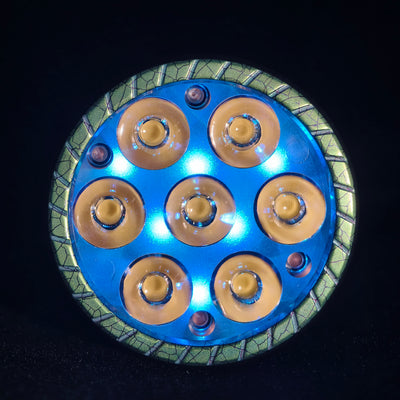

• RGB Auxiliary (front), Illuminated Side Switch with Charging Indicator
• CNC Construction, 6063-T6 Alloy, PVD-coated Stainless Steel Bezel
• 7-Emitter TIR Optics
• Lume1 6A High Efficiency Constant-Current Buck Driver (over 90% efficiency) with FET Turbo and UDR (Ultra Dynamic Range)
• Be-Cu Silver-Plated Springs
• Toughened Front Glass Lens, AR Coated (~98% transmittance)
• 2A Fast Charging, Firefly Patented Magnetic Type-C Port (Patent 2023235776065)
• Magnetic Tail Cap (optional)
• Water Resistance - IPX8

Included Accessories

• 1x SS Clip
• 1x Lanyard
• Spare O-rings

For E07X Cannon V1: These flashlights come with a standard tailcap with the same finish as the body. An optional black PVD-coated magnetic tailcap is available separately (order here). These are not compatible with the V2.

User Interface: (Anduril V2)

This flashlight uses the open-sourced Anduril user interface.

By default, this flashlight begins in Simple UI with 5 brightness levels. Enter the hidden Advanced UI to access additional features and more configuration options. Details can be found in Anduril User Guide.

Charging

E07X Cannon features an intelligent 2A battery charger. For optimal charging, use a USB-C port that can source at least 5V 2A. Upon the start of charging, the side-switch illuminates red. When charging is complete, the red indicator turns off. A flashing red indicator indicates a charge fault.

For battery safety, cells below 3V are pre-charged at 100mA before the full 10W charge starts, transitioning to constant voltage, and ending with trickle-charging. The charger includes a 10-hour safety timer to prevent extended charging.

While not recommended, the flashlight may be used while charging, but if operated at higher power levels than the charging rate, the battery will not be charged.

Battery Level Indicator

Anduril2 UI uses the front RGB auxiliary LEDs to indicate the current battery level upon turn-off. The colors correspond as follows:

This post-off display can be turned off or configured in Anduril.

Anduril 2 is an open-sourced software and distributed under the terms of GPLv3. The source can be accessed here.

Operation Notes

• E07X Cannon is a high-performance flashlight and can generate a lot of heat during operation. Please understand that this is not a toy and should be handled with safety.
• To prevent accidental activation of the flashlight, it is recommended to lock-out the flashlight (4 clicks from off to lock or unlock) before storage, or unscrew the body slightly as a mechanical lock-out.
• E07X Cannon has low-voltage protection which cuts off power at 2.8V. It is recommended to begin recharging the cell before this happens to increase battery longevity.
