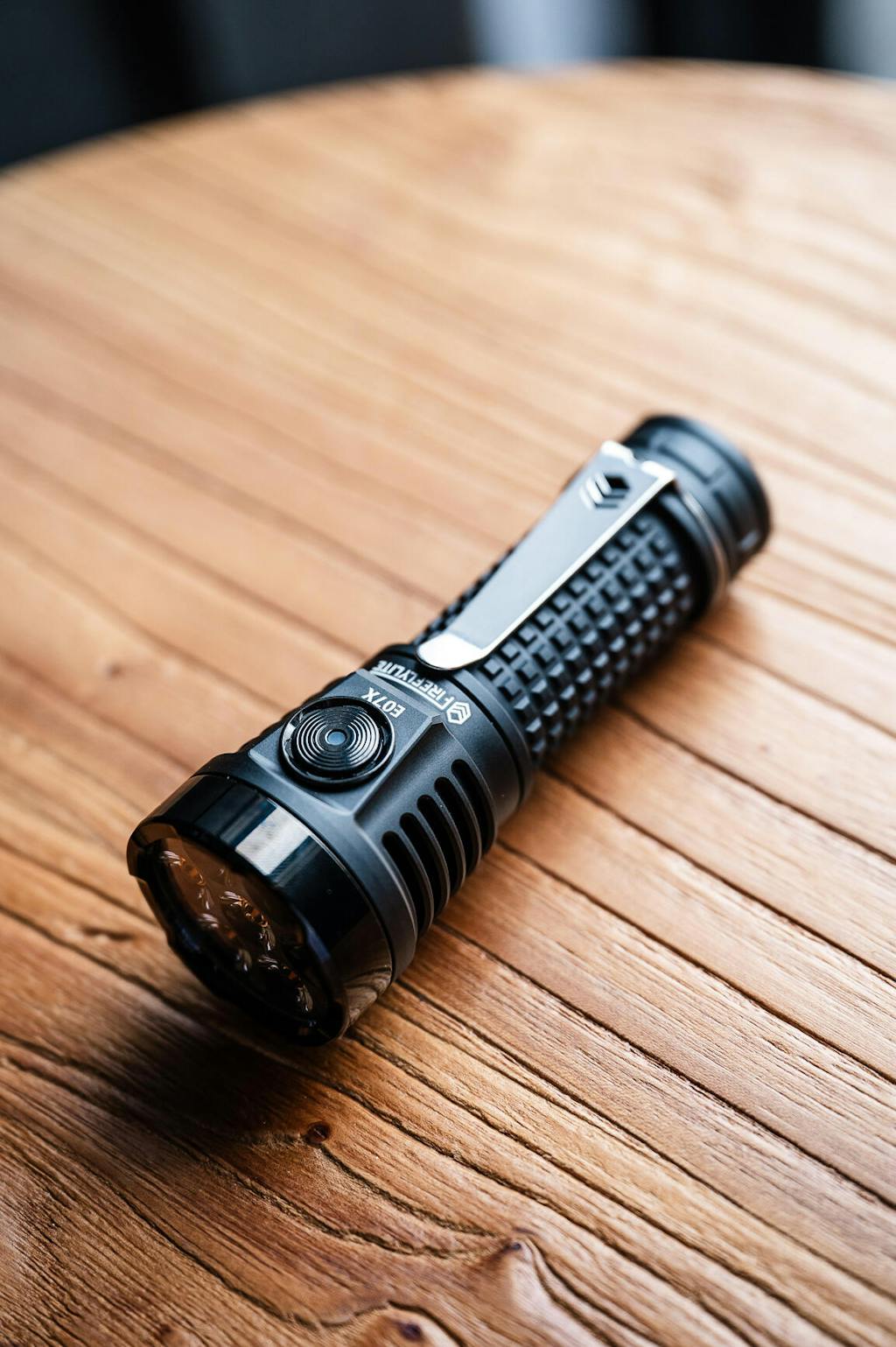

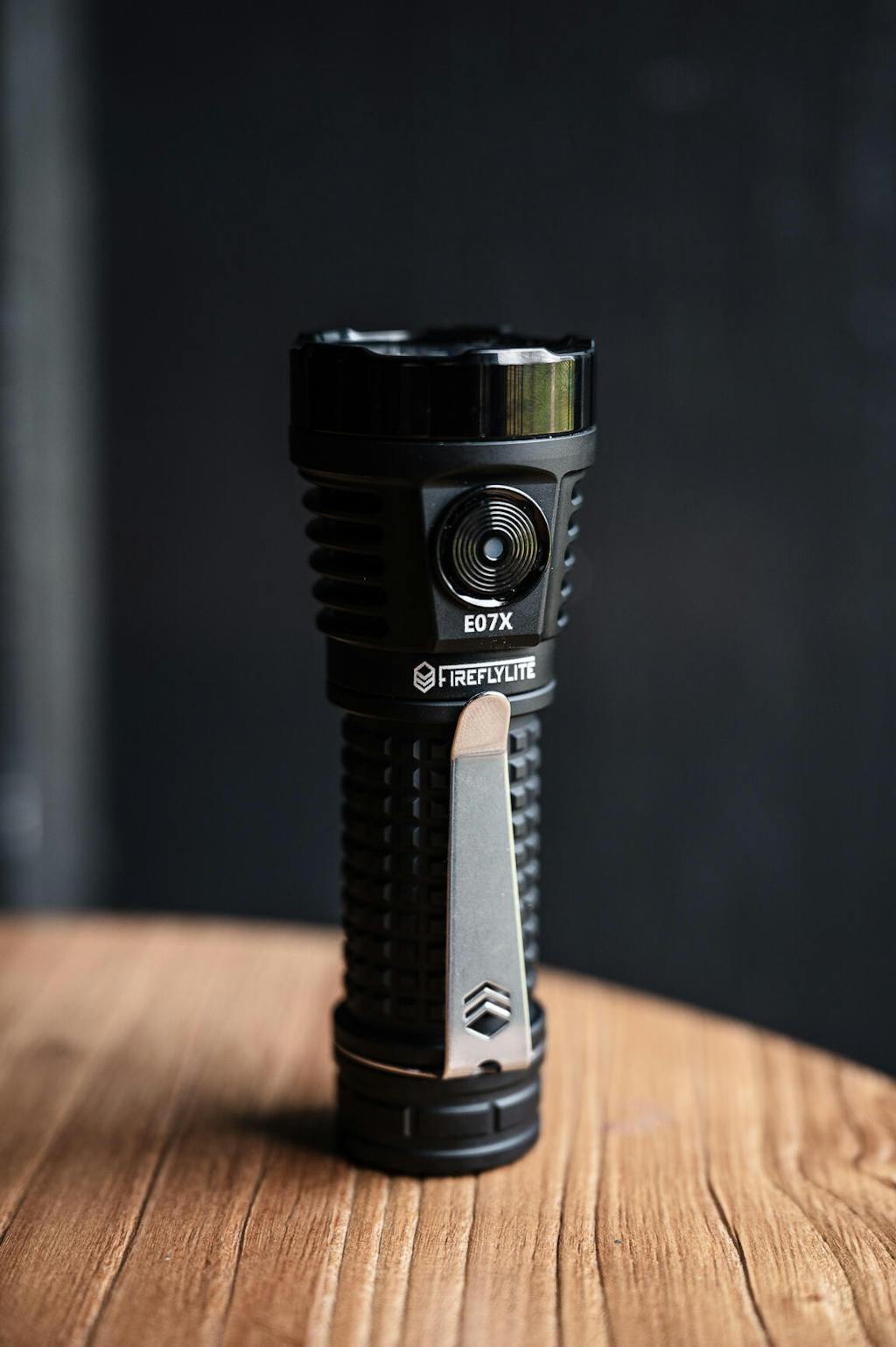

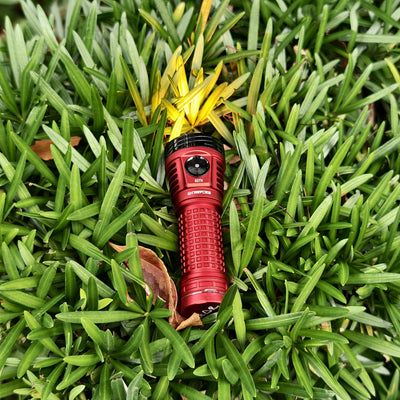

Introducing the new E07X Cannon. We refined everything you loved about the E07X, crafting a more compact form without sacrificing any performance. We paired this with the proven high-efficiency Lume1 drive electronics; the E07X Cannon puts the sun in the palm of your hand.

  • New optimized size - 109mm (reduced from 123.5mm)
  • New Firefly Magnetic USB-C Cover (Patent 2023235776065)
  • New Firefly Emitter Options (FFL351A series)

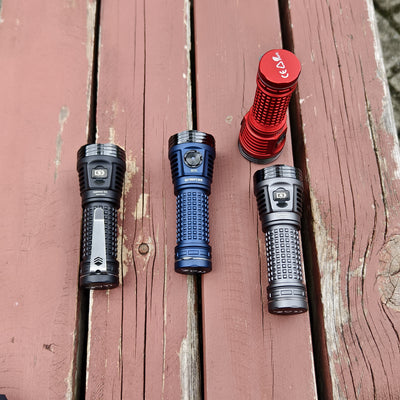

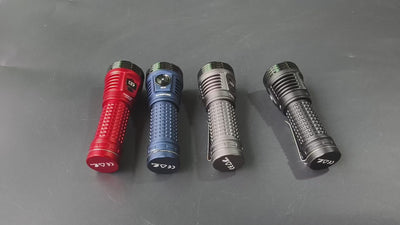

  • Toughened Micro-Arc Oxidation Finishes:
    • Fossil Grey MAO
    • Dark White MAO
  • Anodization Finishes:
    • Matte Black HAiii
    • Wine Red
    • Navy Blue
  • Anodized T-cut Threads
  • Improved E-Switch Design

Features

  • Compact Size - 109mm x 40mm x 26.5mm
  • Weight - 140g (with magnetic tail cap, without batteries)

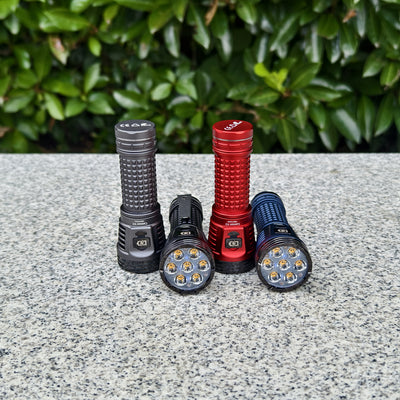

  • 7x 3535 LED Emitter Configuration
    • Max Output: 5500 Lumens (depending on emitter choice)
    • Beam Distance:  XPL HI - 380m; FFL351A - 320m
  • Battery - unprotected flat-top 21700 (not included, recommended to use high-drain cells including Molicel P42, P45, P50, or Samsung 40T, 50S, or Vapcell T50)
  • RGB Auxiliary (front), Illuminated Side Switch with Charging Indicator
  • CNC Construction, 6063-T6 Alloy, PVD-coated Stainless Steel Bezel
  • 7-Emitter TIR Optics
  • Lume1 6A High Efficiency Constant-Current Buck Driver (over 90% efficiency) with FET Turbo and UDR (Ultra Dynamic Range)
  • Be-Cu Silver-Plated Springs
  • Toughened Front Glass Lens, AR Coated (~98% transmittance)
  • 2A Fast Charging, Firefly Patented Magnetic Type-C Port (Patent 2023235776065)
  • Magnetic Tail Cap (optional)
  • Water Resistance - IPX8

Included Accessories

  • 1x SS Clip
  • 1x Lanyard
  • 1x Spare Frosted Glass Lens
  • Spare O-rings

All E07X flashlights come with a standard tailcap with the same finish as the body. An optional black PVD-coated magnetic tailcap is available separately (order here).

Runtime* Table

Mode

Brightness

Runtime

Moon

<0.001 lm

months

Low

50 lm

2.5 days

Mid2

280 lm

14 hrs

Mid1

1200 lm

3.3 hrs

High

2200 lm

2.7 hrs

Turbo @ 0s

5500 lm

2.5 hrs

Turbo @ 30s

2200 lm

Temp. Regulated

Turbo @ 10m

1200 lm


*Cree XLP HI 6500K with Vapcell 21700 T50 Battery


    User Interface: (Anduril V2)

    This flashlight uses the open-sourced Anduril user interface.

    By default, this flashlight begins in Simple UI with 5 brightness levels. Enter the hidden Advanced UI to access additional features and more configuration options. Details can be found in Anduril User Guide

    Charging

    E07X Cannon features an intelligent 2A battery charger. For optimal charging, use a USB-C port that can source at least 5V 2A. Upon the start of charging, the side-switch illuminates red. When charging is complete, the red indicator turns off. A flashing red indicator indicates a charge fault.

    For battery safety, cells below 3V are pre-charged at 100mA before the full 10W charge starts, transitioning to constant voltage, and ending with trickle-charging. The charger includes a 10-hour safety timer to prevent extended charging.

    While not recommended, the flashlight may be used while charging, but if operated at higher power levels than the charging rate, the battery will not be charged.

    Battery Level Indicator

    Anduril2 UI uses the front RGB auxiliary LEDs to indicate the current battery level upon turn-off. The colors correspond as follows:

    This post-off display can be turned off or configured in Anduril.

    Anduril 2 is an open-sourced software and distributed under the terms of GPLv3. The source can be accessed here

    Operation Notes

    • E07X Cannon is a high-performance flashlight and can generate a lot of heat during operation. Please understand that this is not a toy and should be handled with safety.
    • To prevent accidental activation of the flashlight, it is recommended to lock-out the flashlight (4 clicks from off to lock or unlock) before storage, or unscrew the body slightly as a mechanical lock-out.
    • E07X Cannon has low-voltage protection which cuts off power at 2.8V. It is recommended to begin recharging the cell before this happens to increase battery longevity.
